Grinding through half an inch of plate with an angle grinder is the slow way to do this job, and oxy-fuel burns through your consumables while warping the steel as it goes. A plasma cutter puts an ionized air jet straight through mild steel, stainless and aluminum with no physical blade touching the metal. After comparing ten machines on output amperage, clean cut rating, ignition method and air demand, these are the best plasma cutters for thick steel in 2026.

We looked past the marketing line that every brand prints on the box. That headline thickness is almost always a maximum severance figure, which means the machine can get through the metal but leaves a slaggy, angular edge you have to grind anyway. We read the clean cut rating separately from the severance figure on every machine below, because the gap between those two numbers is where most buyer disappointment comes from.

All ten machines here run on compressed air and none include a compressor, so every buying decision also depends on what is already in your garage. If your shop is set up for thinner stock and light duty work, our desktop laser cutter guide covers a different approach entirely. Updated for October 2026.

How Thick Can a Plasma Cutter Cut?

A 30 amp plasma cutter cleanly slices about 1/4 inch mild steel and can sever up to 3/8 inch. A 50 amp machine cuts roughly 1/2 inch clean and pushes through 3/4 inch at maximum, while 60 amp units reach 5/8 inch clean and sever near 1 inch. Only machines rated at 80 amps and above reach a genuine 1 inch clean cut, and even those are pushing their rated limit on plate that size.

Clean cut capacity is the thickness the machine slices with a smooth, square edge you can weld straight from. Maximum severance is the thickest material it can physically punch through before the arc fails, usually with heavy dross on the finished edge. Always size a machine on clean cut, not severance.

Here is the reference chart most listings leave out:

• 30 amp – 1/4 inch (6mm) clean cut, 3/8 inch (10mm) maximum severance.
• 40 amp – 3/8 inch (10mm) clean cut, 5/8 inch (16mm) maximum severance.
• 50 amp – 1/2 inch (13mm) clean cut, 3/4 inch (20mm) maximum severance.
• 60 amp – 5/8 inch (16mm) clean cut, roughly 1 inch (25mm) maximum severance.
• 80 amp – 3/4 inch (20mm) clean cut, 1 inch (25mm) maximum severance.
• 100 amp and above – 1 inch (25mm) clean cut, 1-1/2 inch (38mm) maximum severance.

One practical reality check from the field: on r/Welding, owners of a Miller Spectrum 375 report smooth, clean cuts up to 3/8 inch and note that above that thickness oxy-fuel competes on speed and edge quality. That is a fair caution. Plasma wins on thin to medium plate, on rusty or painted stock, and on anything where a mechanical blade would stall.

Top 3 Plasma Cutters for Thick Steel

All 10 Plasma Cutters at a Glance in 2026

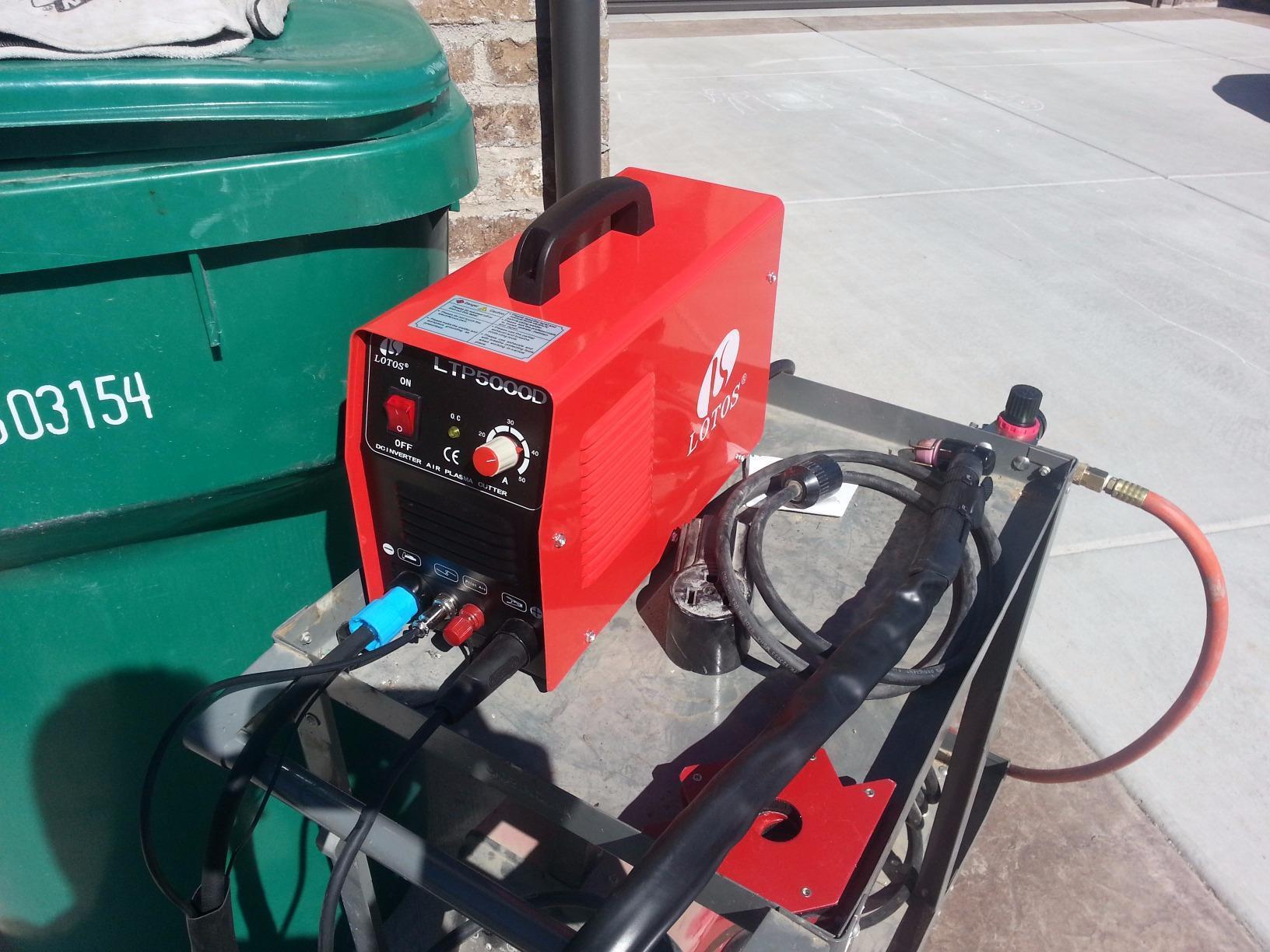

1. LOTOS LTP5505D 55A – The Most Proven Machine in the Group

This is the machine I recommend to someone cutting thick steel in a home garage, and the reason is not the specification sheet. It is that 2400 owners have left feedback on it, which makes it the most documented machine in this roundup by a wide margin. When you hit a setup problem or a consumable question, there is a large body of people who have already solved it.

The 55 amp inverter section carries a 5/8 inch (16mm) clean cut rating, and the switching is automatic across 110V and 220V, so you do not hunt for a selector when you move between the garage and the shop. A front-mounted air regulator with a pre-fitted NPT 1/4 inch Type-D plug means the air side is connected before you plug in the power.

The rust removal mode is a genuinely useful addition rather than a marketing label. It suits scale-covered material, and the non-touch pilot arc torch is built with standoff capability so you can hold tip height off the surface. Owners also point to the machine cutting 1/2 inch stock cleanly and faster than machines with higher headline amperage.

Air demand is the part to plan around. At 220V it runs efficiently with a modest shop compressor, but this is still a 55 amp load and a small pancake compressor will struggle during sustained passes. On the Langmuir forum, a user reports a shop compressor holding about 6 CFM that kept up while cutting a 1 inch hole, which is a reasonable target for a machine in this class.

Two real complaints come up repeatedly. The ground cable is noticeably shorter than the torch lead, so on a large plate you spend time working around the cable. Air fittings and the supplied hose can leak at the joints and need extra sealing tape before the first cut.

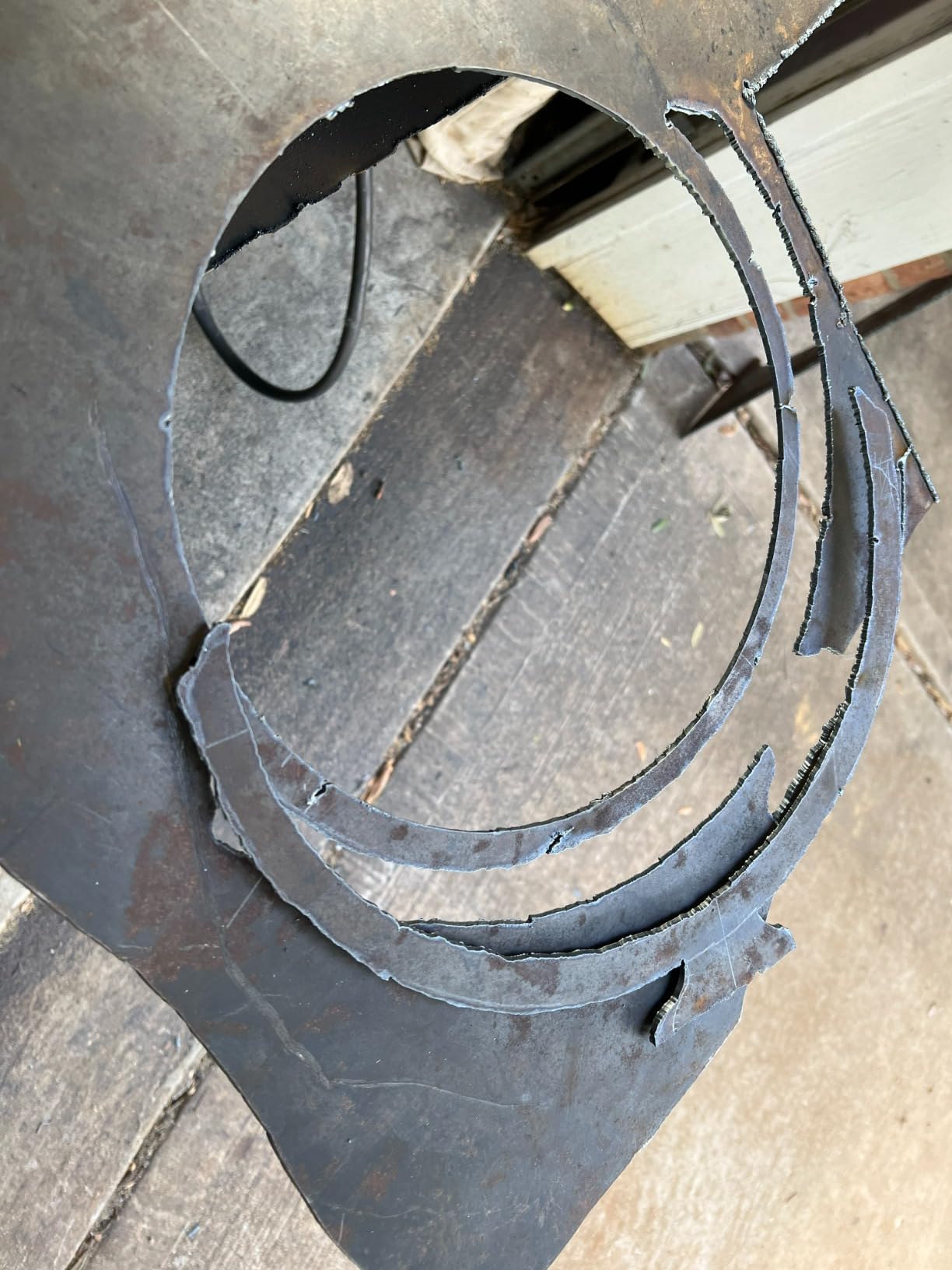

What 1/2 inch plate looks like on it

Plenty of owners cut 1/4 to 1/2 inch plate cleanly and report results that outrun commercial machines costing far more. At 1/2 inch the kerf is straight, the edge is square and it welds without grinding. That is the rating you should hold this machine to.

The specification sheet lists a 5/8 inch clean cut, so treat 5/8 inch as the ceiling where the edge is still good. Beyond that you are into severance territory and you should expect dross and a slower cut.

Where the machine falls short

Consumable wear gets noticeable when you run it at sustained high amperage, and the instruction booklet is sparse enough that most owners learned setup from videos. A small number of buyers report early failure and an awkward service experience, while long-term owners past a year generally report it still performs as expected.

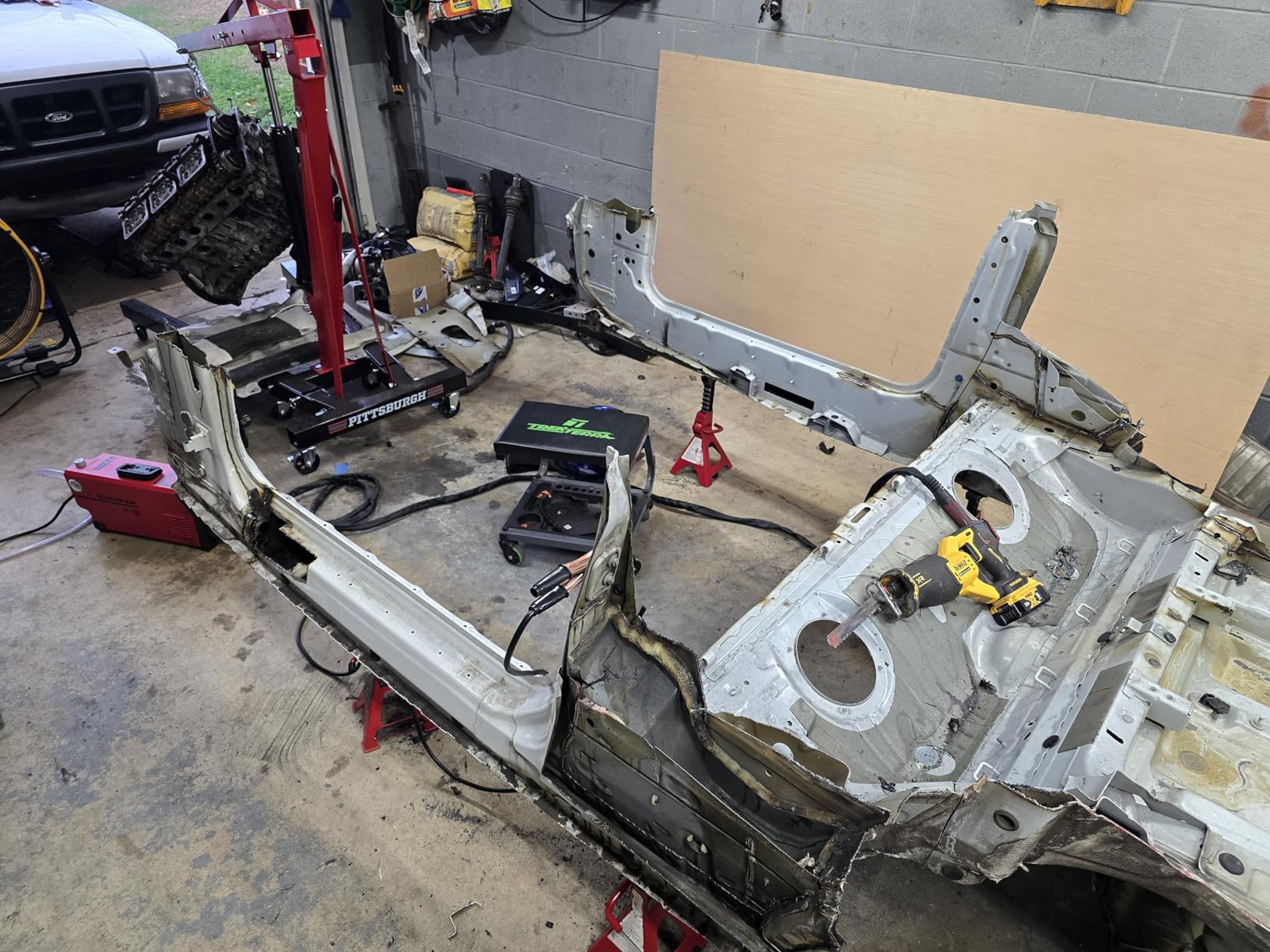

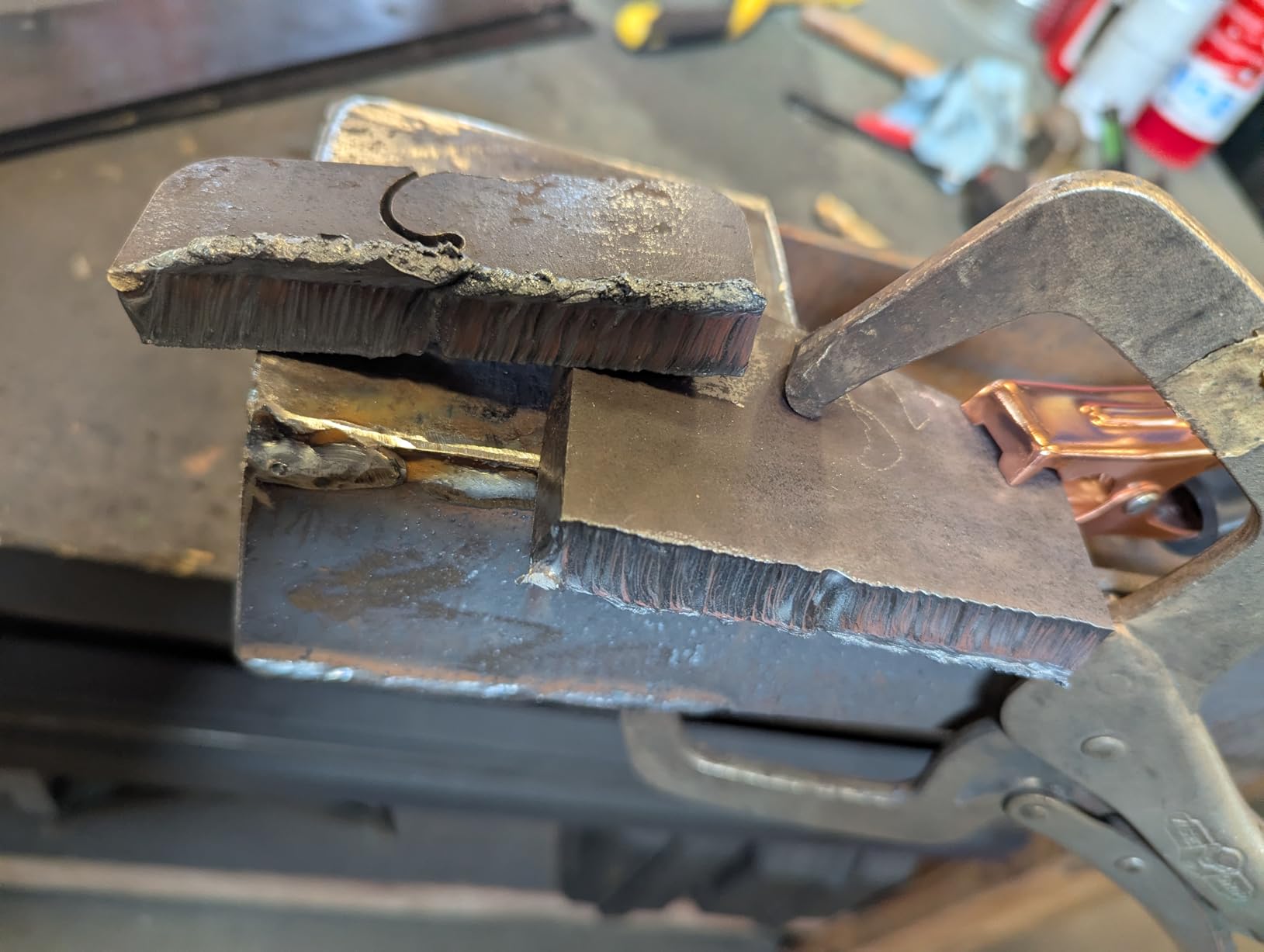

2. ARCCAPTAIN CUT50 50A – The Clearest Specification for 220V Work

This is the machine I would pick if your thick steel work all happens at 220V and you want to know exactly what the machine will do before you buy it. The spec sheet is unusually honest: 12mm recommended maximum at 35A, 110V and 55 PSI, then 18mm at 50A, 220V and 75 PSI. Very few machines in this price band publish the amperage, voltage and air pressure together.

Output runs from 20 to 50 amps, and the LED display shows voltage, current and error codes as you work. Adjustable post-flow cooling runs from 5 to 15 seconds and both 2T and 4T trigger modes are available, which matters if you ever move to a CNC table or a foot pedal.

Buyers consistently report that the machine performs like a much more expensive unit on 1/2 inch steel at 220V, and that first-time plasma users are cutting confidently within a few practice passes. The stated air flow capacity of 150 L/min and a 60 dB cooling system are both friendly to a small shop.

At 13 pounds with a shoulder strap, this is among the easiest machines here to move to a job site. Most owners use it for garage fabrication, automotive repair and property fixes rather than production work.

Buy an adapter for your compressor. The air inlet is a hard line rather than a standard quick connect, and that is the single most common setup complaint in the reviews. The machine also cannot wait for a small compressor to recover during sustained cutting.

How the 110V and 220V difference shows up in practice

On a 120V circuit this machine gives you 12mm of recommended capacity. On 240V it reaches 18mm. If your thick steel work is genuinely thick, buy this knowing it performs as a 220V machine, and treat 120V as a convenience mode for thinner stock.

Owners also note the cut finish on thinner material is less refined than a larger machine produces. For 1/8 to 1/4 inch work the edge is usable but not the smoothest in this group.

Who should skip it

If you want a single machine that runs a TIG or stick mode alongside the plasma section, the 3-in-1 option further down this list covers that. Buyers who need the very smoothest edge on thin plate will want a higher output unit instead.

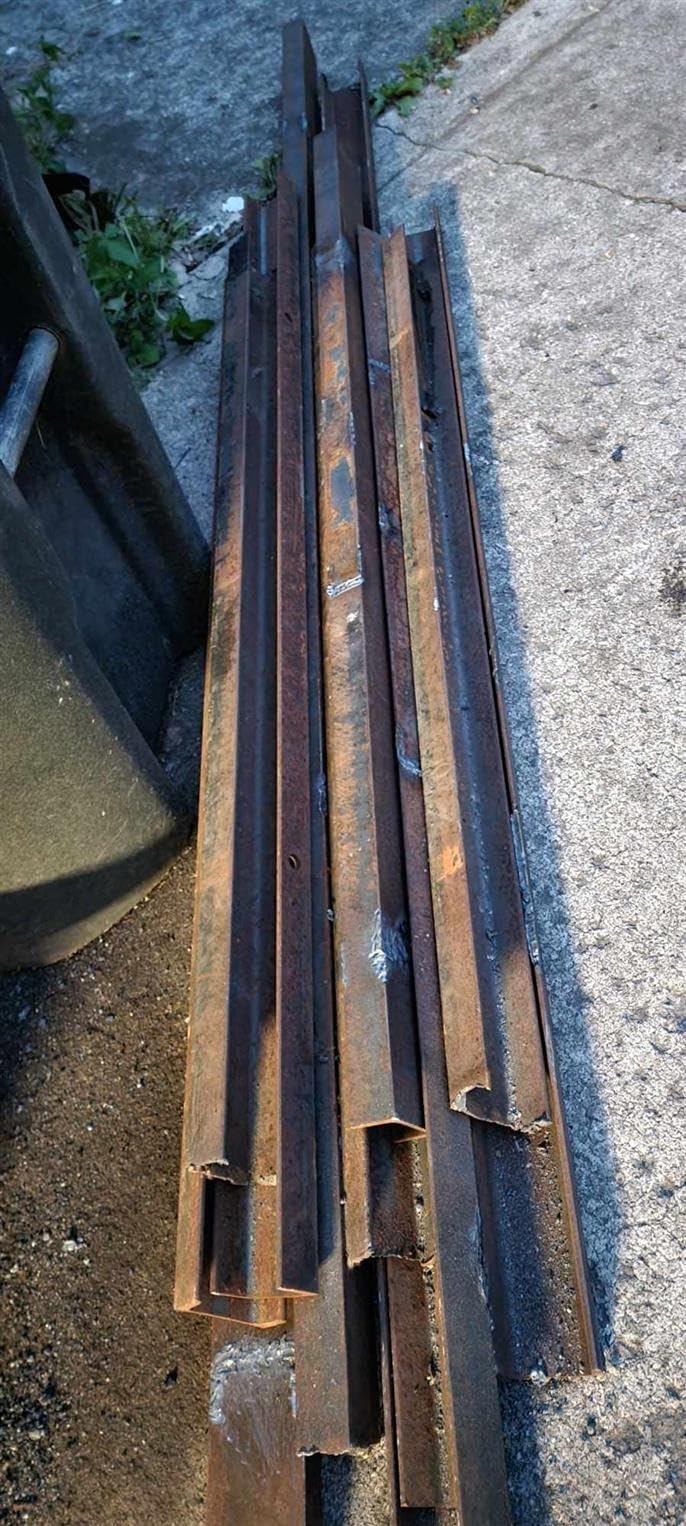

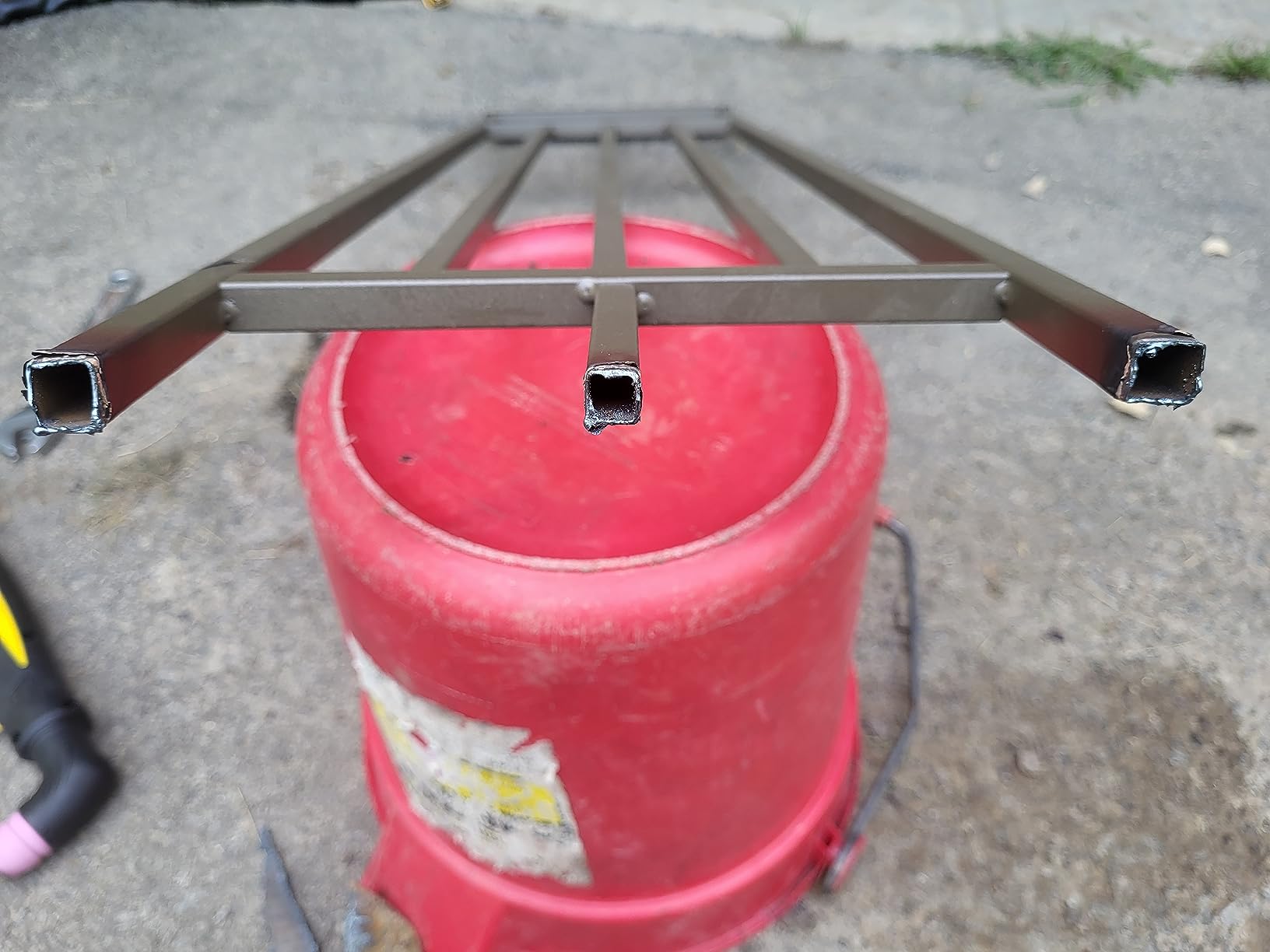

3. TOOLIOM CUT-50 PRO 50A – Real 220V Capacity With the Most Polarised Feedback

The headline number here is real: 1/4 inch (8mm) clean cut at 110V and 5/8 inch (16mm) at 220V, with a maximum of 1/2 inch at 110V and 3/4 inch at 220V. That places it level with several more expensive machines on paper. The catch is in the distribution of ratings, which is the widest in this roundup.

Owners who get it working well praise the digital readout, the manageable size and the dual-voltage flexibility. The AG60 non-touch pilot arc torch cuts stainless, alloy, mild steel, copper and aluminum, and a post-flow air purge of 5 to 20 seconds helps consumable life.

Maximum air pressure is 50 PSI at 110V and 65 PSI at 220V. Feed it under that and you will see arc instability and unfinished edges, which matches the most common critical review pattern. Air pressure is the variable to watch on this machine, not the amperage setting.

Consumable sourcing is the other practical issue. AG60 consumables and replacement parts are harder to find than for the leading brands in this group, so plan on ordering a spare set before you need it rather than after.

When it is the right pick

This suits a buyer who already understands plasma cutting basics and is willing to manage air pressure and consumables directly. If that describes you, the 5/8 inch clean ceiling on 220V is a genuinely capable machine for plate work.

For mixed metals it is a good fit too, since the pilot arc torch handles stainless and aluminum alongside mild steel without a torch change.

When it is the wrong pick

First-time buyers are more likely to be disappointed here than anywhere else in the list. The 4.1 average reflects a long tail of one and two star feedback tied to air flow and arc consistency, and those are the exact problems a beginner cannot diagnose on their own.

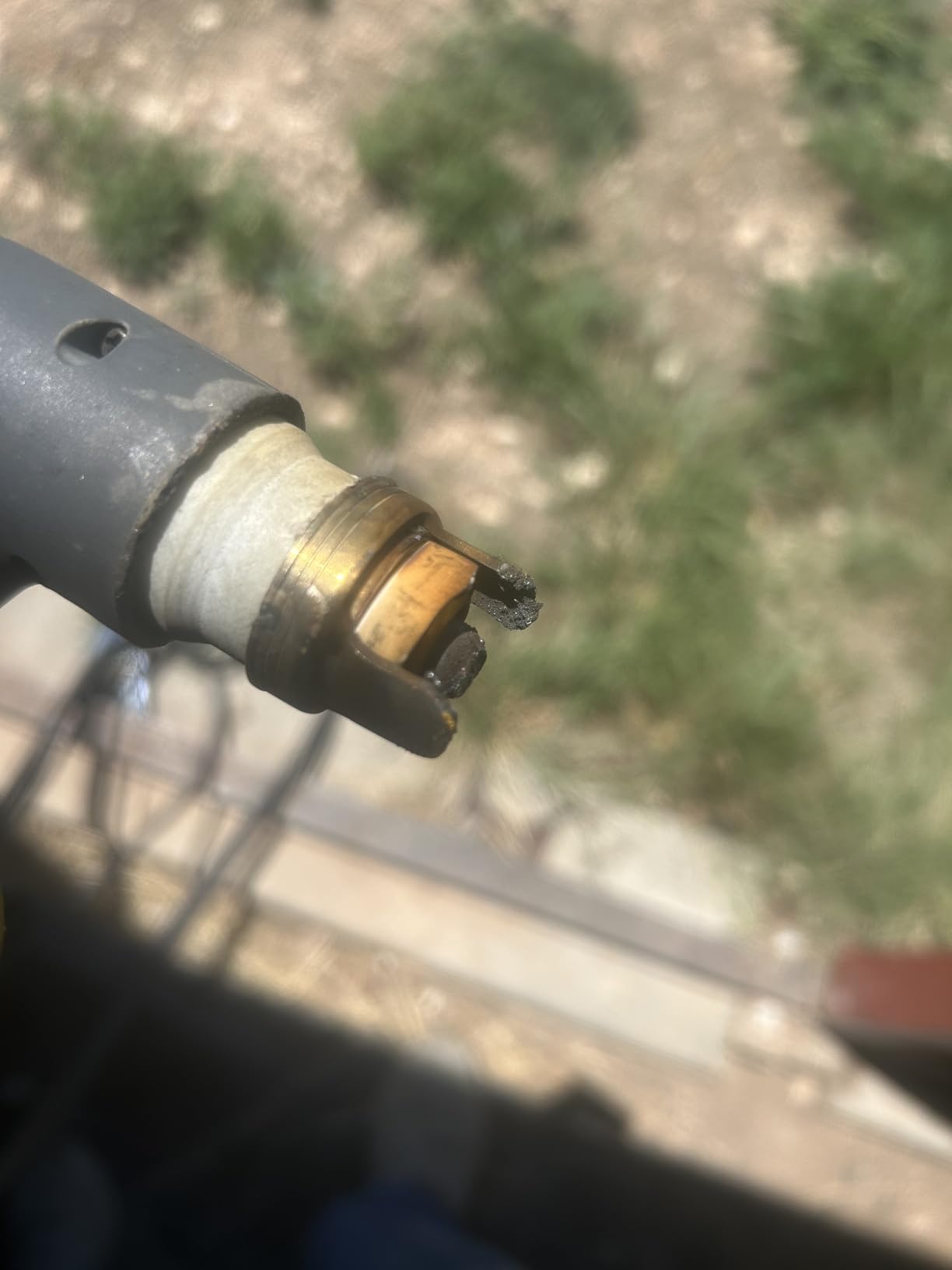

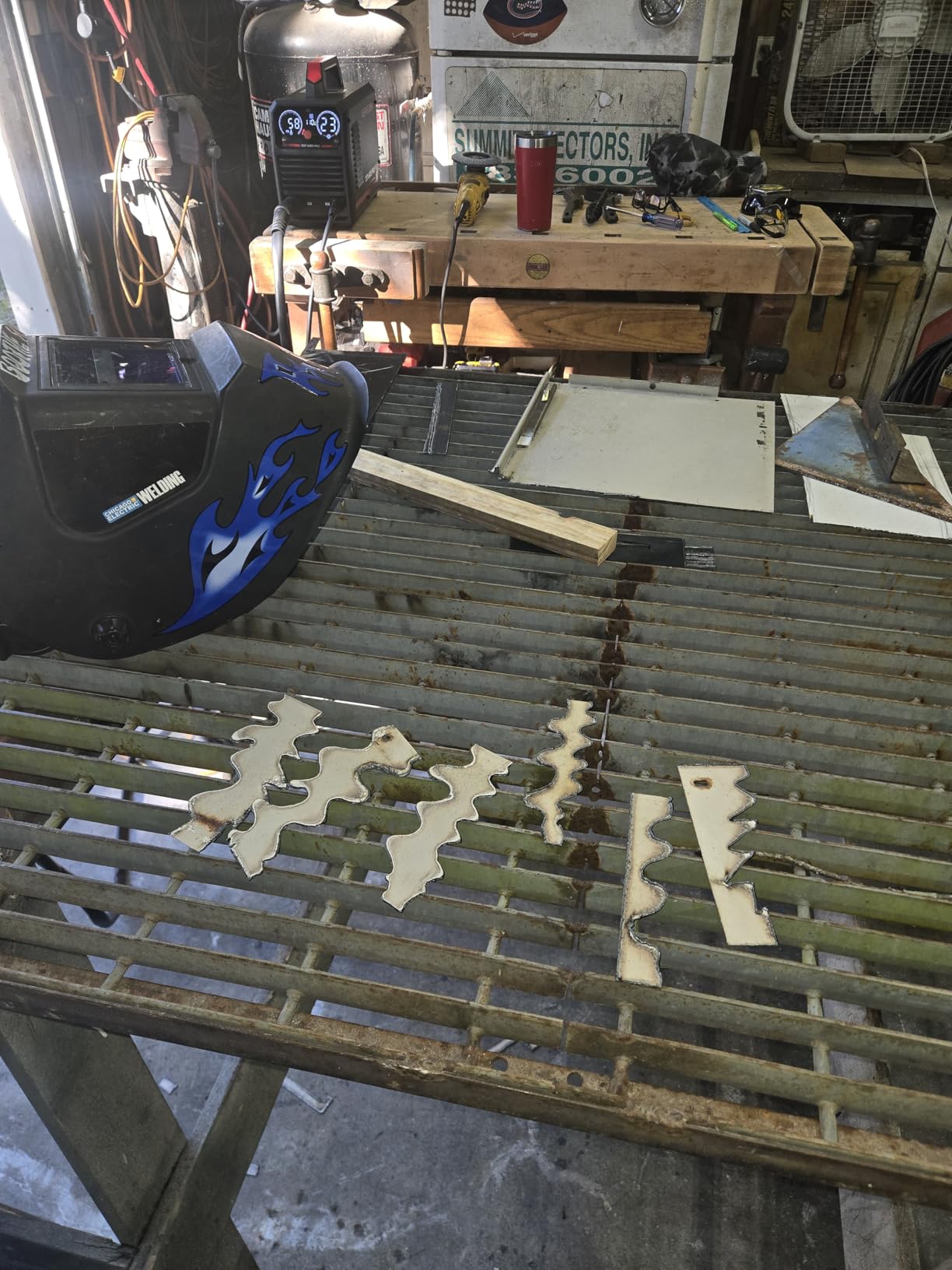

4. YESWELDER CUT-65DS 60A – The Non-HF Start That Plays Nicely With Electronics

Most machines in this roundup use a high-frequency start. This one does not, and that single design choice is why it stands apart. Blow-back ignition is safer around bystanders, laptops, CNC equipment and garage door openers, all of which are common in a working home shop.

Forum discussion about high-frequency interference is not theoretical. Users planning DIY CNC tables run 0.035 to 0.065 inch chromoly and mild steel and specifically ask about EMI from HF starts, and a machine that skips HF entirely removes that whole category of problem from your list.

Output is a genuine 60 amps, with a clean cut of 5/16 inch at 110V and 5/8 inch at 220V. Maximum cut reaches 1/2 inch at 110V and 63/64 inch at 220V, which is one of the higher severance figures from a machine in this band.

The box is well plumbed. An air filter regulator, air hose, ground clamp, power adapter, earth leakage protection and the IPT40 non-touch pilot arc torch all ship with it, and reviewers single out the generous lead lengths. PT, 2T and 4T functions are all available with post-flow adjustable from 5 to 20 seconds.

Peak output is listed at 9840 watts with a 625 inverter capacity volt-amp, and IP21 water rating protection sits alongside overload and overheat safeguards.

The compromise is the 120V side. Output there drops to roughly 5/16 inch clean cut and 1/2 inch maximum, so this machine only earns its keep on a 240V circuit for thick work. The warranty is one year, which is shorter than some rivals.

Why non-HF ignition matters in a working shop

HF start machines can disrupt routers, garage door openers, radio equipment and CNC stepper drivers. If your shop has a home office, an automated door, or electronics you care about, blowing that cost into the machine decision is worth it.

Reviewers also value that blow-back start is more forgiving with people nearby, which matters in a two-person shop where a helper is holding the plate.

Where you give up something

Nothing on the output side if you have 240V. Without it, you are looking at 5/16 inch clean capability, which is thinner than several 50 amp machines in this list manage on the same circuit.

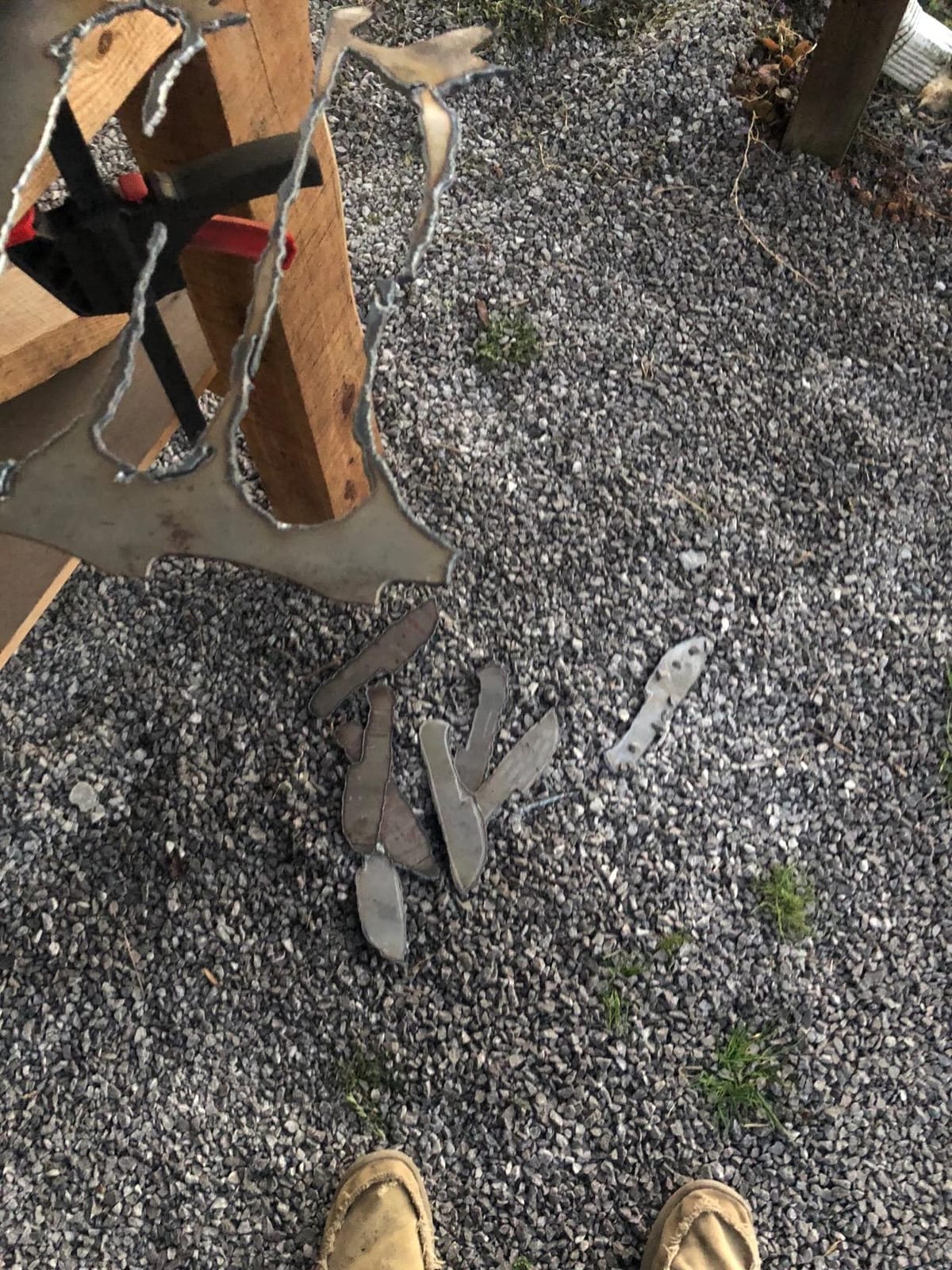

5. PRIMEWELD CUT50D 50A – The Highest Satisfaction Score in the Group

A 4.7 average across 668 reviews is among the strongest satisfaction signals in this roundup, and the reason is consistently the same in the reviews: after-sales support. Owners report answers within an hour, replacement tools shipped quickly, and warranty turnaround that paid return shipping. For an imported machine, that is the differentiator.

On capability it holds a 1/2 inch clean cut rating with automatic dual voltage 110V/220V AC operation. Current production units arrive pre-plumbed with a brass quick connect at the rear air filter and regulator, and the AG60 torch ships with a trigger guard and a 220V power cord already fitted.

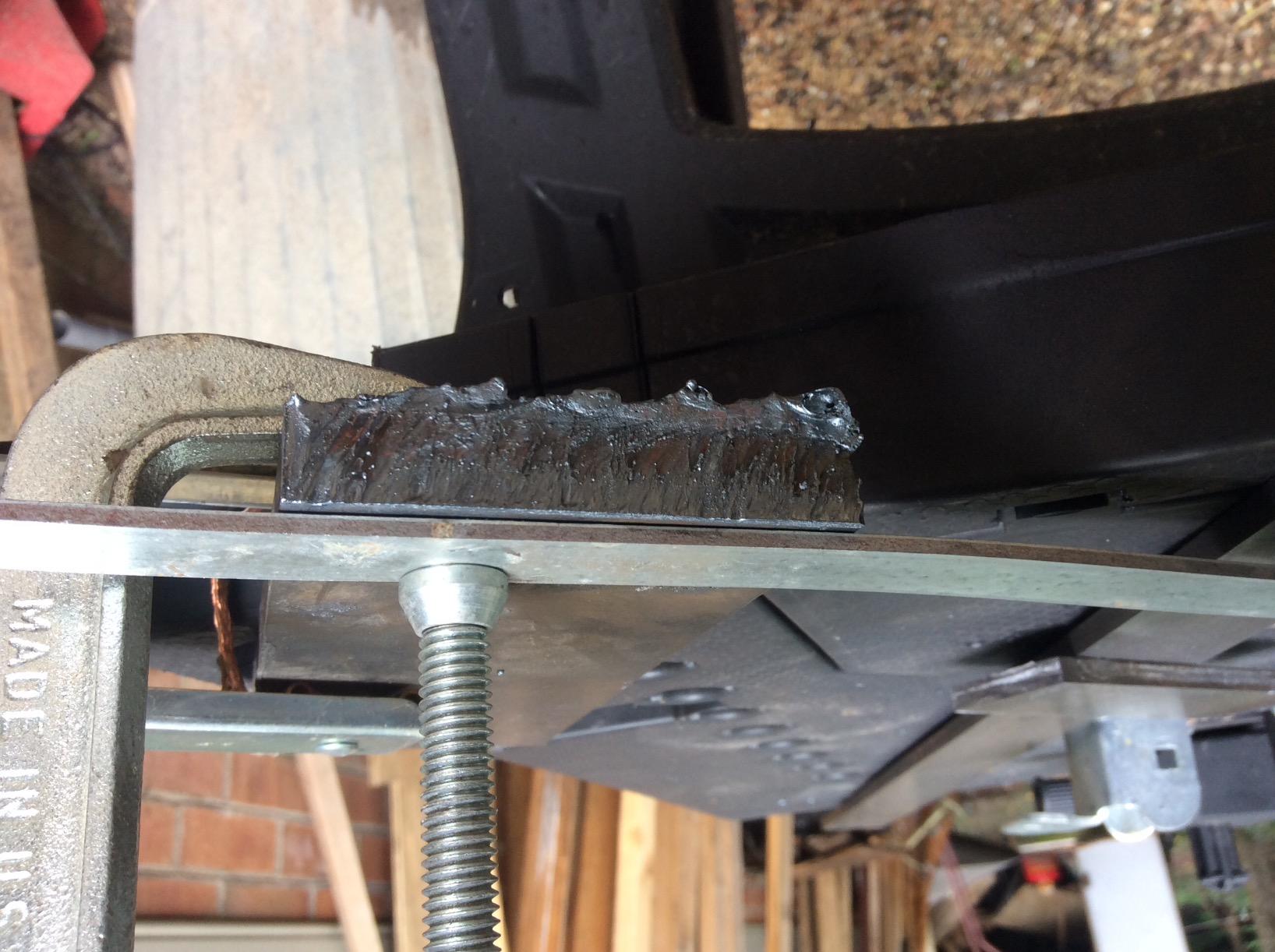

Buyers report cutting 1/2 inch cold roll steel in about five seconds and handling 3/8 inch mild steel without difficulty. Many describe the cut quality and speed as matching machines costing three to four times as much.

The unit is compatible with a Hobart-style 6-50P plug, which is useful if you already own a setup built around that connector. Long-term owners commonly report two-plus years of reliable use, and the ground clamp and torch both feel well made.

Documentation is the weak point. The manual is poor enough that most buyers are advised to find setup videos first, and the power cord is short, so an extension or adapter is a sensible addition. On a 20A 110V circuit, thick cuts are slow simply because of the current limit.

What 5 seconds on 1/2 inch looks like

That is the number to hold it to. Half an inch of cold roll steel in about five seconds is a clean, square, weldable edge with no grinding, and it is the reason this machine posts one of the top satisfaction scores here despite modest headline amperage.

Below that, it behaves like a well-built 50 amp machine on 1/4 inch work, which is where most home projects actually sit.

Where support quality actually matters

Consumables and torches are where imported machines usually leave you stuck. When the support side is responsive and ships parts, that gap shrinks considerably, and it is the argument this brand makes better than any competitor here.

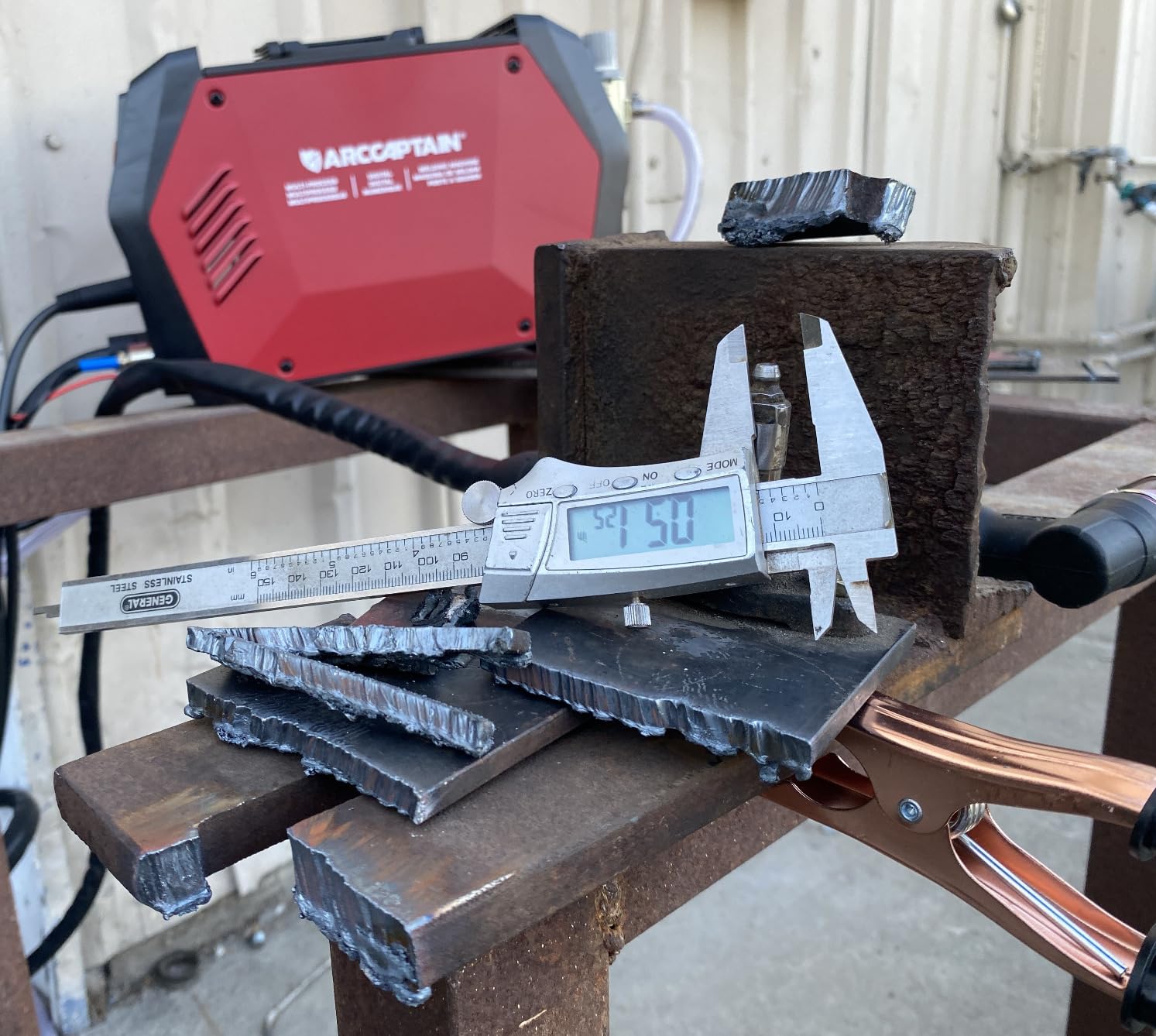

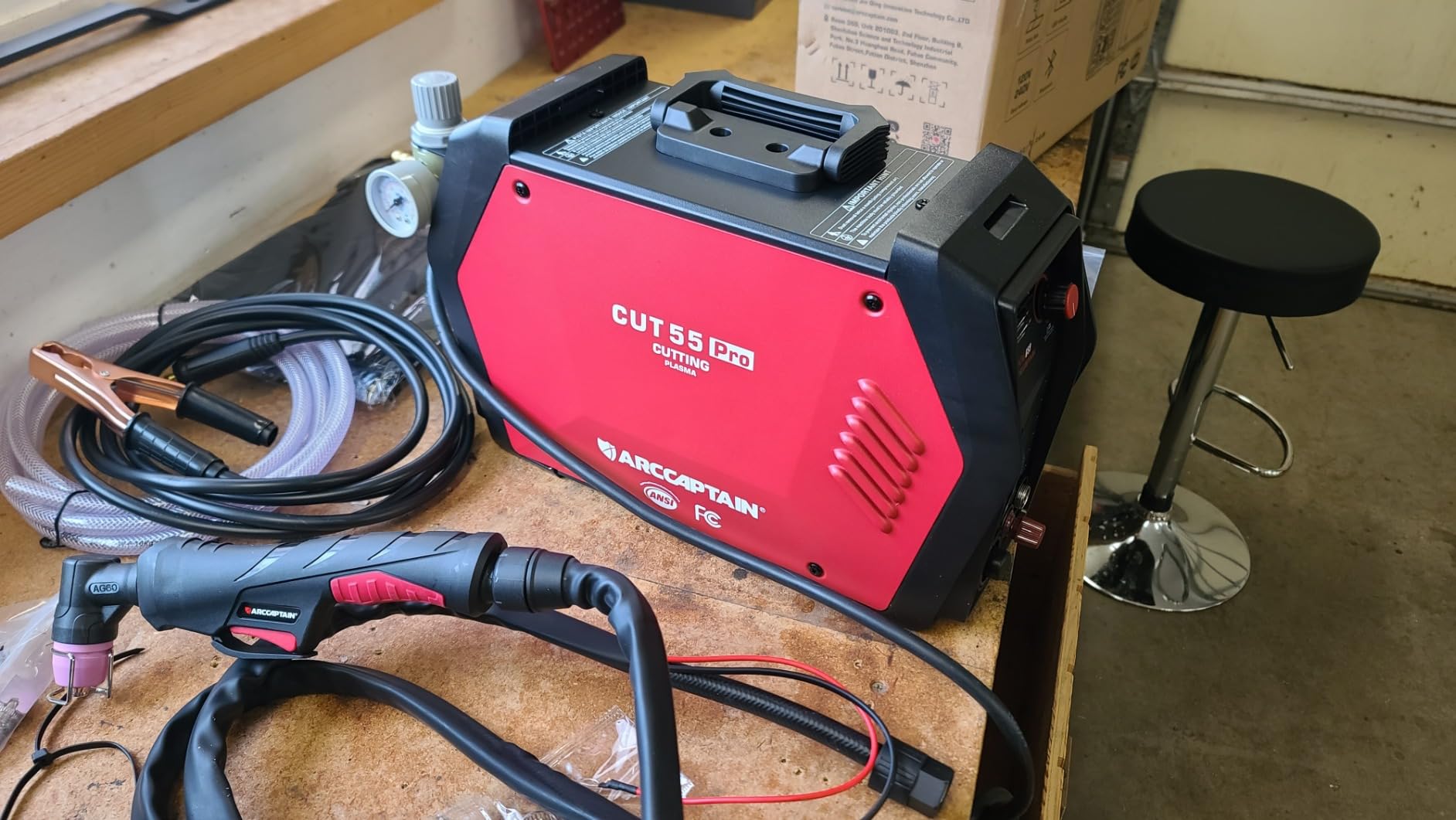

6. ARCCAPTAIN iControl CUT55 Pro – Remote Parameter Setup and the Longest Warranty Here

This is the feature-forward option. The MCU digital control upgrade regulates current and voltage more precisely than a basic analog machine, and the companion app lets you adjust parameters, monitor the cut in real time and save settings from up to 10 meters away. If you cut the same material repeatedly, saving a proven parameter set is genuinely useful.

Cutting performance matches the listing: a 12mm (1/2 inch) quality cut and 20mm (3/4 inch) maximum, using high frequency non-touch pilot arc ignition. Reviewers confirm those numbers hold up in practice.

Automatic post-blow is the sleeper feature. Cooling time adjusts itself by amperage, which removes a manual step that most operators would otherwise get wrong and that costs you consumable life when it is too short.

The box includes a 10 foot AG60 cutting torch, 10 foot air hose, 10 foot earth clamp and a 120/240V power adapter. A pre-installed air regulator and filter gets you cutting within about a minute of unboxing, and ANSI certification comes with overcurrent, overvoltage, overload and overheat protection.

The three-year warranty is among the longest stated here, and the fault alarms plus smart cooling fan back it up. For a shop that wants the machine to be the least interesting part of a work session, that combination is worth a lot.

It is also one of the heavier machines in the 50 to 55 amp group at nearly 20 pounds, and the app dependency annoys a small number of reviewers who set their parameters once and never open it again.

When remote setup earns its place

If you cut the same steel, stainless or aluminum repeatedly, saving a tuned parameter set removes trial and error on every job. That is the use case where the app stops being a gimmick.

The automatic post-blow helps just as much. It extends consumable life, which pays off across the hundreds of pierces in a busy year of cutting.

When to skip it

If you cut one-off projects and set your amperage by feel, you will not open the app. And at nearly 20 pounds this is a harder machine to carry to a job site than lighter units in this list.

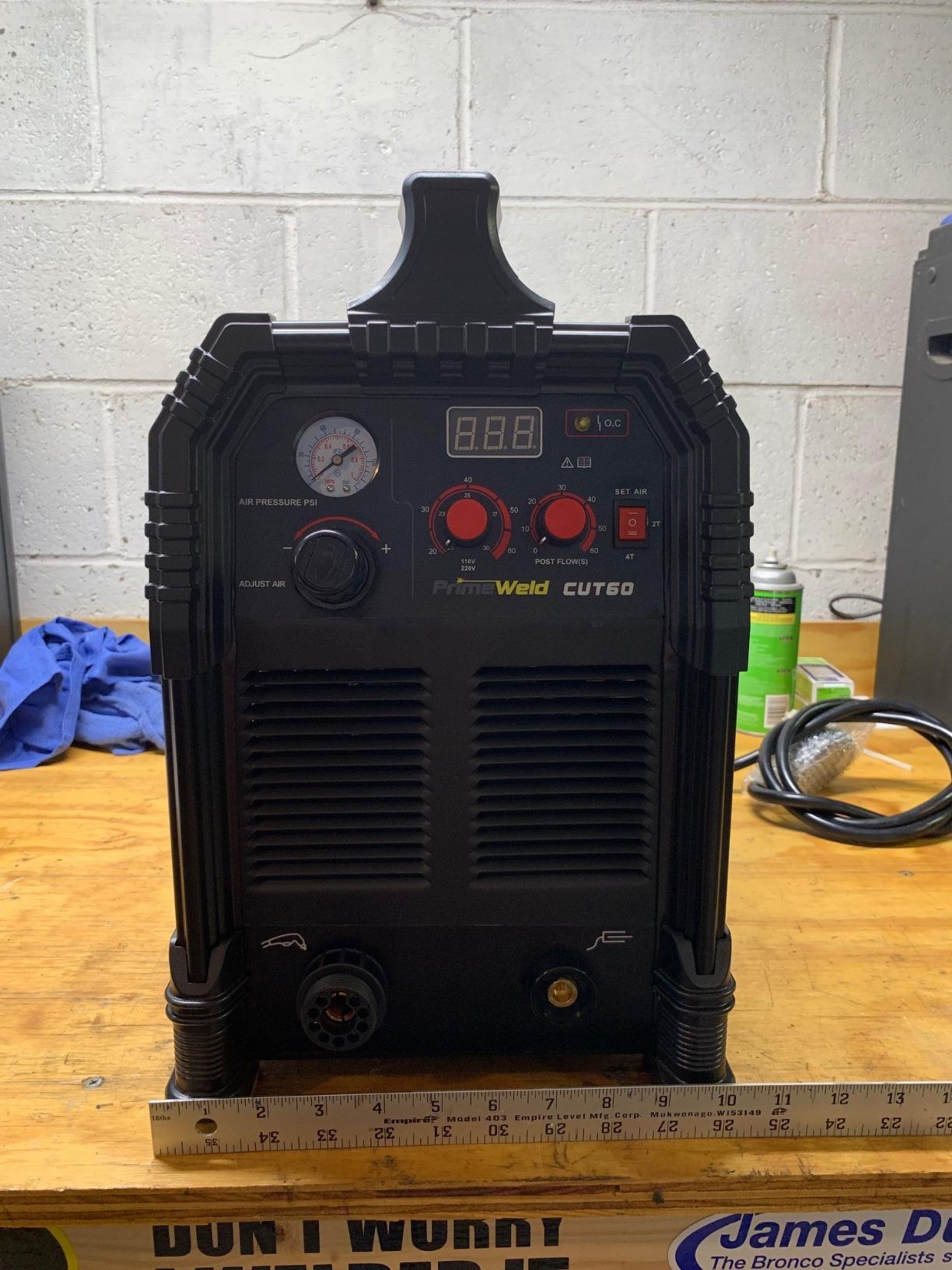

7. PRIMEWELD CUT60 60A – Built for Sustained Production Cutting

An 86 percent five-star share and 1 percent one-star share is the cleanest rating distribution of any machine here. The reason is the duty cycle: 60 percent at the full 60 amp output, which is a stated spec rather than a marketing claim, and it is what lets you keep the arc going on a long production run.

Users on the PlasmaSpider forum point out how often quoted duty cycle figures conflict across marketing pages for the same machine. Read the rated amperage alongside the duty cycle, not the duty cycle alone. Here the two are clear: 60 amps at 60 percent.

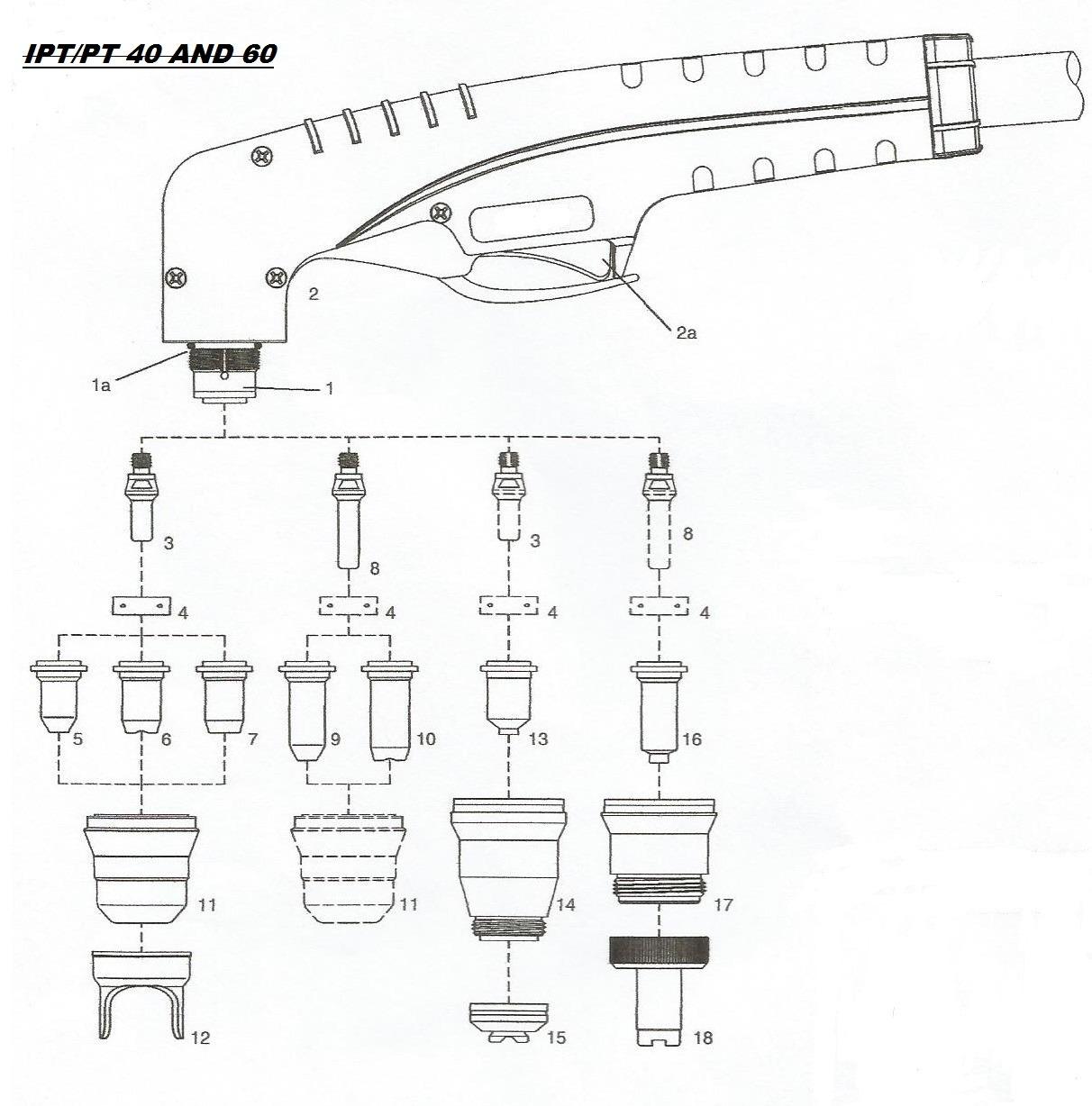

The PT60 blow-back pilot arc torch with a Euro central connection starts reliably through expanded metal, rusted stock and painted surfaces, which are exactly the materials that trip up less capable ignition systems.

For reference on realistic throughput, a user on r/metalworking reports cutting a 25mm flange freehand in about five minutes on a home-built CNC plasma table. That is the kind of session where duty cycle decides whether the job finishes or the machine starts tripping its thermal protection.

The main reservation in reviews is cost relative to the lower-powered units in this roundup, and that only makes sense if you cut thick steel regularly rather than occasionally.

What 60 percent duty cycle means at the workbench

A 60 percent duty cycle means the machine can hold rated output for six minutes out of every ten. If your work is a steady stream of plate cuts, that is the difference between finishing a day and waiting on a cool-down.

If your work is scattered jobs an hour apart, you will never touch that limit, and the higher output buys you nothing.

Before you commit to this one

Check your real workload against the price gap in this roundup. Also confirm the Euro central torch connection suits your consumable sourcing, since that is the one practical limitation reviewers raise.

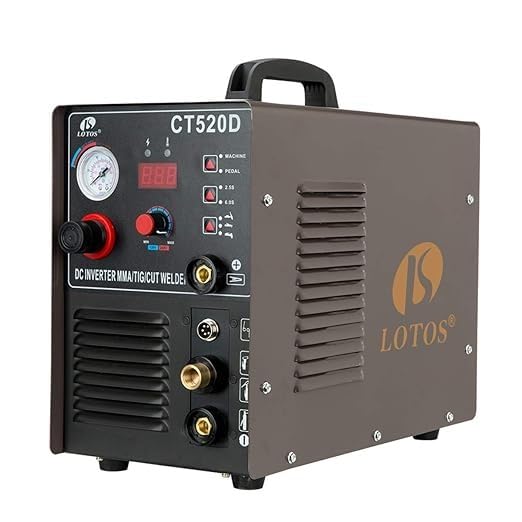

8. LOTOS CT520D 50A 3-in-1 – Cutting, TIG and Stick in One Chassis

Plasma-only buyers should skip this, but if you also need to weld, it collapses three purchases into one. The plasma section delivers a 5/8 inch (16mm) clean cut and a 3/4 inch (20mm) severance, and an upgraded PC board is claimed to add roughly 25 percent more cutting power than a standard 50 amp cutter.

The welding sides are 15-200A DC TIG with HF arc start hand torch control, and 15-200A DC stick with adjustable hot striking arc current. Owners buy it as a single-box shop and report satisfaction with the plasma capacity in particular, setting up against a shop compressor in about a minute.

It cuts stainless, alloy steel, mild steel, copper and aluminum, so a mixed-metal shop gets one tool for the whole list. A pre-installed NPT 1/4 inch Type-D plug and air filter regulator ship in the box.

Where the compromise shows is weight. At 33.1 pounds this is by a wide margin the heaviest machine here, and it is a carry rather than a shoulder-strap job. The TIG foot pedal and argon regulator are not included, so budget for both if you plan to use the TIG mode seriously.

A small number of isolated one and two star ratings point to dissatisfaction with one of the welding modes, which is common with multi-process boxes where the plasma section gets most of the engineering attention.

When the math works out

If you were going to buy a separate plasma cutter, TIG and stick welder anyway, this single chassis replaces all three. That is the case where the value case is strong, particularly for a garage that does body repair and fabrication on the same weekends.

You get genuine 5/8 inch clean cut capability from the plasma section, not a compromised demo mode.

When it is dead weight

If plasma cutting is your only job in the shop, 33 pounds of unused welding hardware is a lot of mass to move around. A dedicated single-process cutter is lighter, simpler and usually a better match for the task.

9. ARCCAPTAIN CUT55 55A – The Fastest Path to a Clean First Cut

The thing that makes this machine approachable is that amperage, air pressure and post-flow come pre-set. A new owner is cutting competent 1/2 inch plate without reading a manual, which is not something any other machine in this list makes easy.

Underneath, it is an IGBT inverter with 60/50Hz high frequency pilot arc ignition and a 60 percent duty cycle. The listed capacity is a 1/2 inch ideal clean cut at 55A, 240V and 60 PSI, rising to a 3/4 inch maximum at 55A, 240V and 75 PSI.

The recommended compressor is 60 PSI at 5.3 CFM, and current display shows 20-35A on 120V against 20-55A on 240V. That gap is the most repeated caveat in the reviews: the machine underperforms its headline numbers on a 120V circuit.

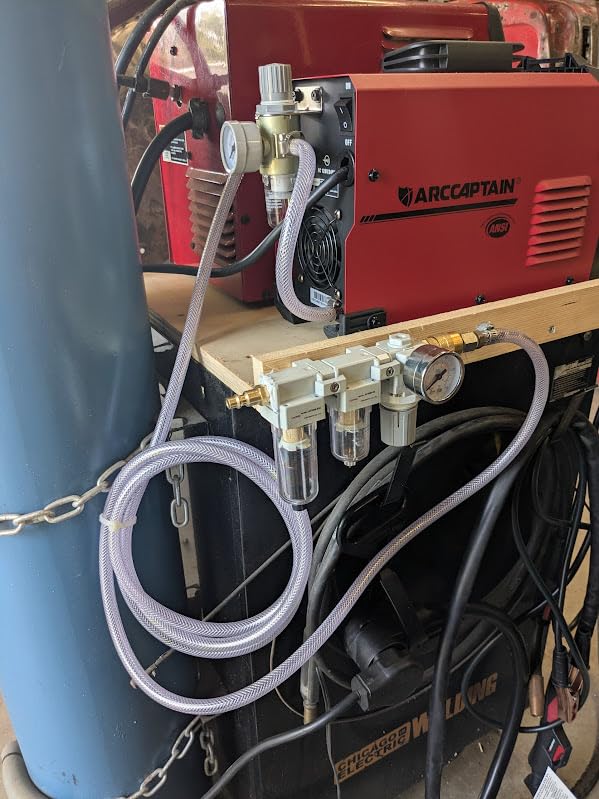

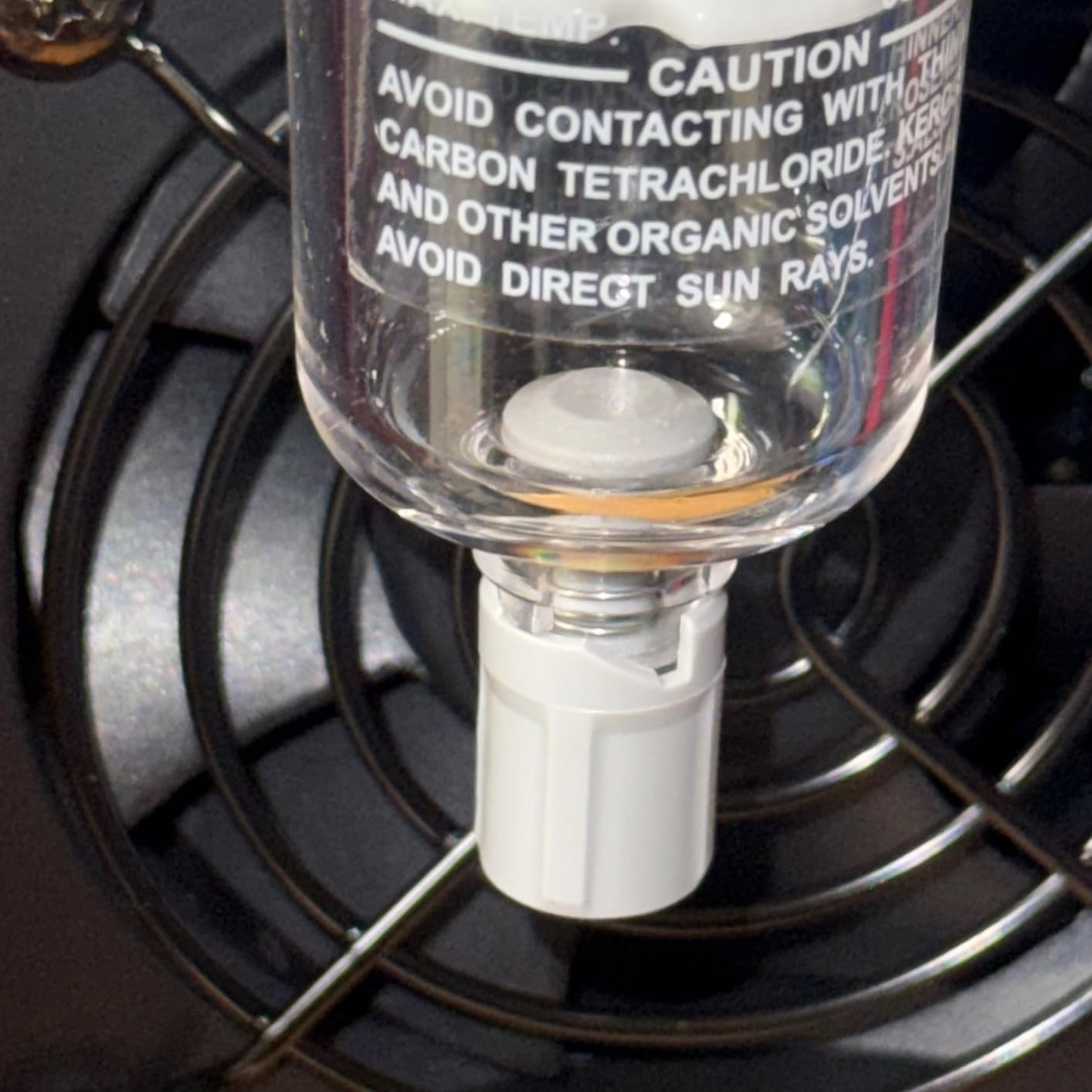

The rear-mounted air filter and pressure sensor make hookup straightforward, and 2T and 4T automatic cutting modes are both available. FCC and ANSI certification are listed, and the box includes a 10 foot air hose, 10 foot cutting torch, 10 foot earth clamp and a regulator and filter.

Reviewers confirm the advertised cutting capacity and appreciate how little setup stands between unboxing and the first cut. The 10 percent one-star share is higher than the PrimeWeld machines see, with early units and fit-and-finish issues accounting for most of it.

Why the presets matter more than the amperage

Amperage is the easy number to understand. Post-flow timing is what actually determines whether your consumables survive, and having it set automatically means a beginner is not burning tips on a bad setting in the first afternoon.

For someone learning plasma cutting on plate, that removes the most common early frustration.

What the 240V dependency means

Plan on a dedicated 240V circuit if thick steel is the reason you are buying. On 120V you have 20 to 35 amps, and the clean cut rating drops well below 1/2 inch, so the machine is effectively operating in a lower tier.

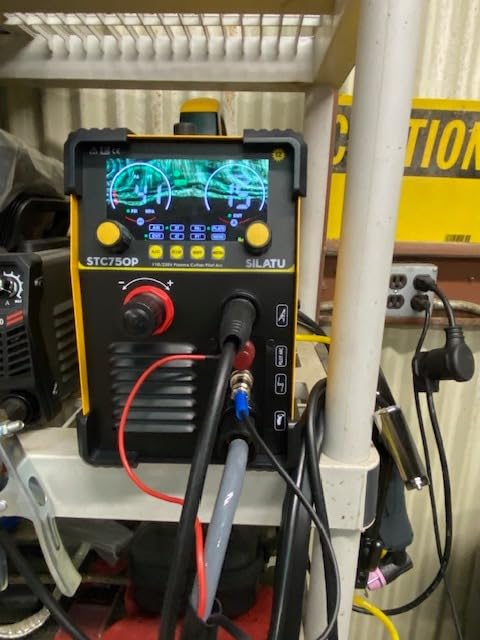

10. SILATU STC750P 75A – The Highest Rated Output and a 1 Inch Severance Figure

That is the only machine in the roundup rated to a 1 inch maximum severance figure, which makes it the answer when the question is specifically about getting through an inch of steel. Output is 75 amps at 220V with clean cut up to 5/8 inch and maximum severance to 1 inch (25mm) at 75A and 70 PSI on 220V.

The feature that sets it apart is adjustable pilot arc duration from 3 to 15 seconds, and no other machine in this roundup offers that range. Long pilot arcs suit mesh and expanded metal where the arc has to cross gaps, and shorter settings are cleaner on solid plate.

The built-in air pressure sensor with a coded E5 low-pressure warning is the second useful addition. Under-supplied air is the leading cause of bad cuts, and a coded warning tells you the cause instead of leaving you guessing.

Also on board: an integrated air filter, front pressure regulator, a 1/4 inch NPT quick connector, and PT, 2T, 4T and PA functions with post-flow adjustable from 3 to 15 seconds. Duty cycle is 60 percent at 75 amps on 220V, which is a real spec for a machine at this output.

The box includes a 13 foot AG60P cutting torch, 10 foot earth clamp, 110/220V wire adapter, air hose and a 220V power plug. At just under 17 pounds it is not heavy for the output class.

Two cautions. Full 75A output needs 240V, since 110V caps at 45 amps. And because this is a newer listing with a shorter history, its 260 reviews are a smaller and less diagnostic base than the longer-running models here.

Reading the 1 inch figure correctly

One inch is a maximum severance number, not a clean cut number. Expect to get through 1 inch material, and expect a slower cut with more dross than the figure suggests. The 5/8 inch clean rating is the number to design your work around.

Real-world thick-plate reference points help here. A user on r/metalworking reports cutting a 25mm flange freehand in about five minutes, which is close to 1 inch territory on a setup that was not built for it.

What the shorter review history means

With a 74 percent five-star share this machine rates alongside the better-reviewed competitors, but the base is younger. For long-horizon reliability, the models with review counts in the hundreds or thousands carry more useful history.

How to Choose a Plasma Cutter for Thick Steel

Start with the thickness of steel you actually cut most often, not the largest job you might take once. Buy on clean cut capacity for that thickness, and treat the severance figure as a limit rather than a promise.

Then match amperage to the work. Roughly speaking, 30 amp machines serve up to 1/4 inch, 50 amp machines reach 1/2 inch, 60 amp machines reach 5/8 inch, and anything above 1 inch clean is an 80 amp and above machine. A machine rated well above your typical thickness will not run at its rated output unless you have the circuit and the air to feed it, so oversizing leaves you with a heavy box you can never fully use.

Duty cycle is the number most people misread. It is the share of a 10 minute cycle the machine can run at rated output, and manufacturer pages frequently quote it at a lower amperage than the headline number. Check both figures together before you assume a machine will run a full day of production work.

Ignition method matters more than most buyers expect. A non-touch pilot arc starts without touching the workpiece, which works on painted, rusty and rough stock. Contact start machines are cheaper but need the torch to touch the metal, which burns the electrode on every start. For high frequency versus blow-back, a blow-back start avoids the electrical interference that can disrupt CNC drivers, garage door openers and routers, at the cost of a slower start on thick material.

Dual voltage is close to essential if your shop is not 240V-only. Most machines here switch between 110V and 220V automatically, though output drops significantly on the lower setting, as the data above shows clearly.

Air supply is the overlooked constraint. A 60 amp class machine typically wants a compressor delivering around 5 to 6 CFM at 60 to 75 PSI, and a small shop compressor that cannot keep up will produce poor cuts no matter how good the machine is. Add a moisture separator or a refrigerated air dryer, because water in the line destroys consumables and causes erratic starts.

On electrical service, a 50 amp machine at 220V wants a dedicated 30 amp branch circuit, and 60 amp and above machines want a 40 amp or larger circuit. Running a high-amperage machine on a 20 amp 240V circuit is the most common real-world complaint in shop discussions, and the fix is electrical, not the machine.

Finally, weigh plasma against the alternatives honestly. Against oxy-fuel, plasma wins on 1/8 to 1/2 inch mild steel, on rusty or painted stock, and on repeat work where setup time matters; oxy-fuel pulls ahead on very thick clean steel where the bevel and edge quality are better. Against laser, plasma handles far thicker material at a much lower entry cost but produces a wider kerf and a heat affected zone. Against waterjet, plasma is quicker on metal up to about 1 inch but cannot cut non-metals. If your work is mostly thin sheet and fine detail, a guided die cutting process may suit it better than any of these.

Frequently Asked Questions

Our Verdict for Thick Steel in 2026

For most people cutting half inch plate and heavier in a home garage, the LOTOS LTP5505D is the pick. It carries a 5/8 inch clean cut rating, switches voltage automatically and has the largest owner base in this group at 2400 reviews, which means better troubleshooting help and better-proven long-term reliability.

If your shop has sensitive electronics or a plan for a CNC table, the YESWELDER CUT-65DS is the smarter buy. Its blow-back start removes the interference problem entirely, and 60 amps of output on 220V reaches 5/8 inch clean.

For sustained production cutting, the PRIMEWELD CUT60 has the strongest combination of rating, 60 percent duty cycle at full output and a three-year warranty behind US support. When the job is genuinely one inch of steel, the SILATU STC750P is the only machine here rated to sever that thickness.

Whichever you choose, confirm your 240V circuit and compressor can feed it before the machine arrives, and see our related cutting tool guides for the rest of the shop.
